Inspect below the signalling.

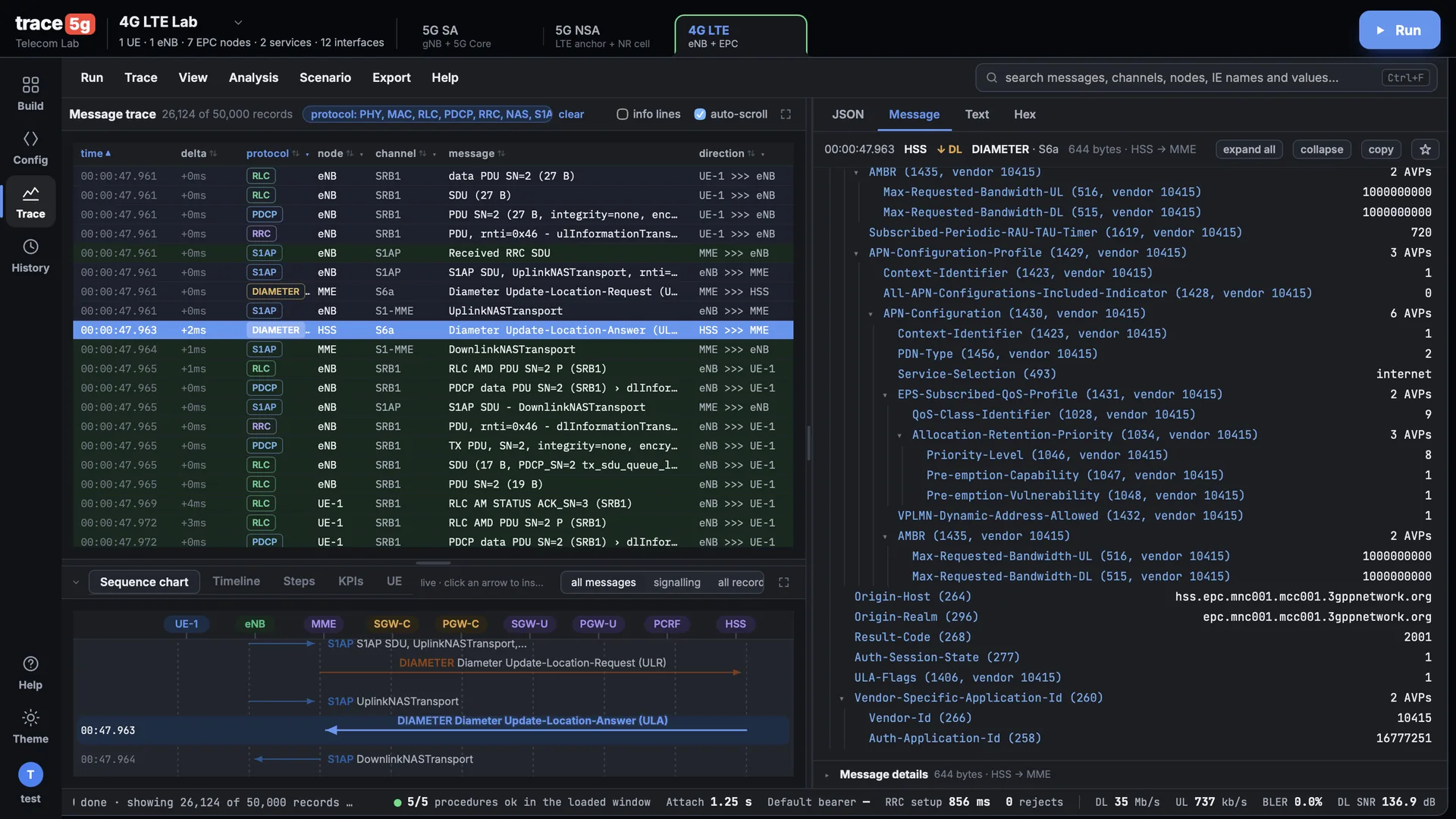

Open actual PHY and MAC records, then examine the decoded fields. Follow radio-layer activity alongside RLC, PDCP and RRC messages.
Your private lab,Radio and core,
All in your browser.
Configure a mobile network, run calls and data sessions, and inspect messages from the UE, radio and core. all in your browser!
Network execution + live analysis
4G LTE5G NSA5G SARead the radio.
Follow the core.
Nothing is simulated or pre-loaded. Enjoy real logs.

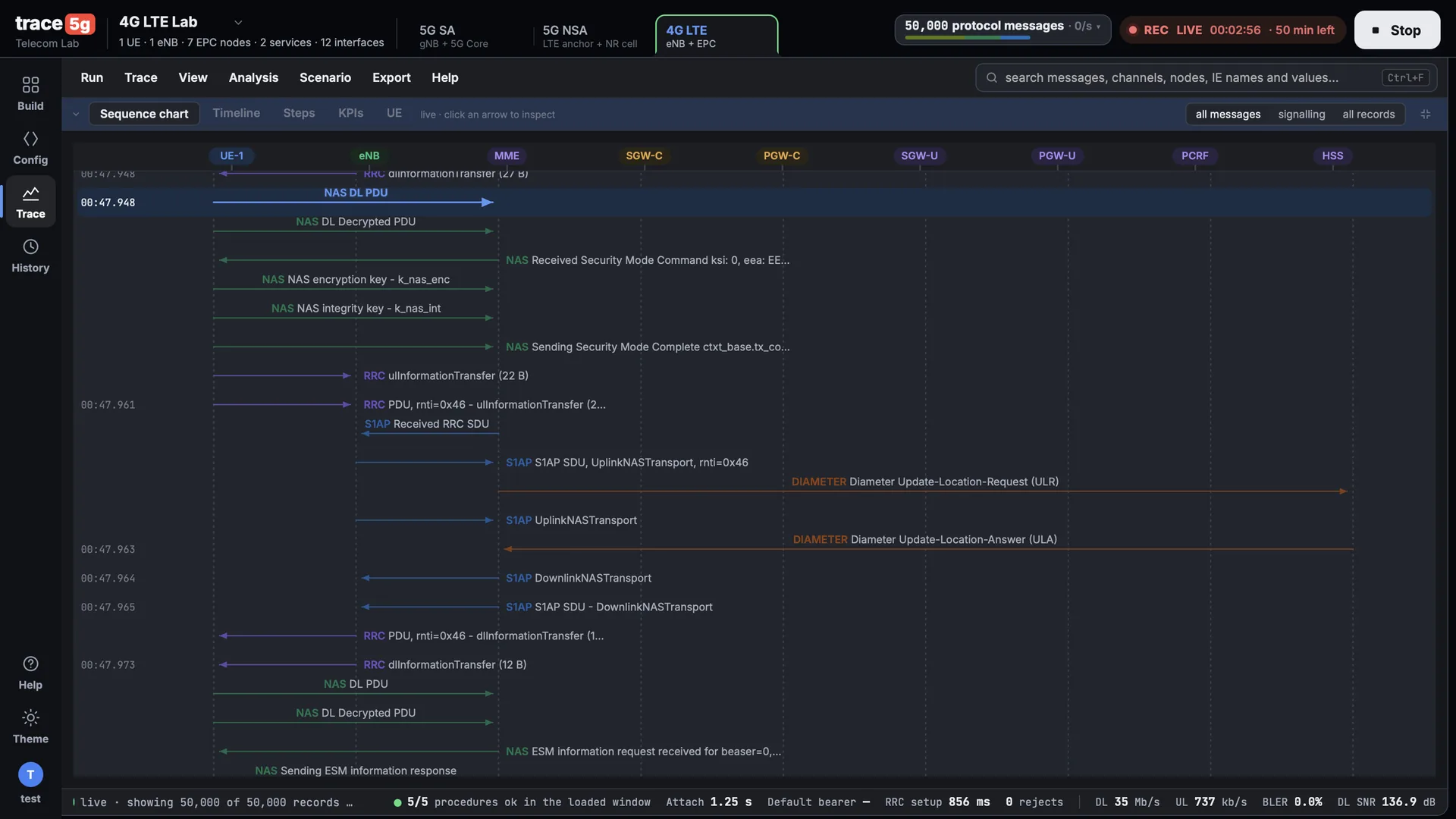

See both ends of an exchange.
Follow requests and responses between participating nodes. Inspect the core-side exchanges behind registration, sessions and service setup.
Put a failure in context.

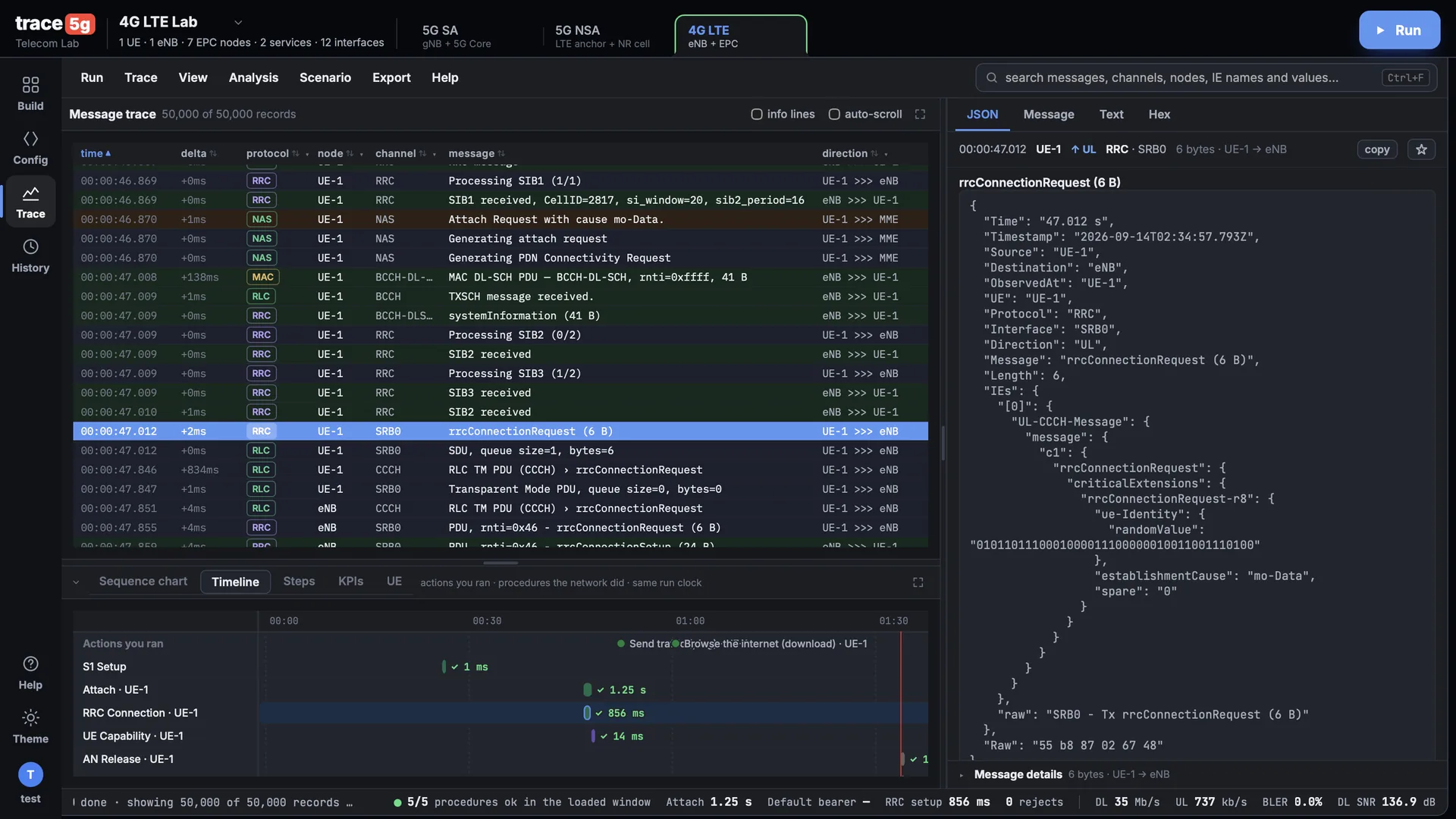

Locate an event in time, then examine the messages around it. Follow what led up to a rejection or interrupted procedure.

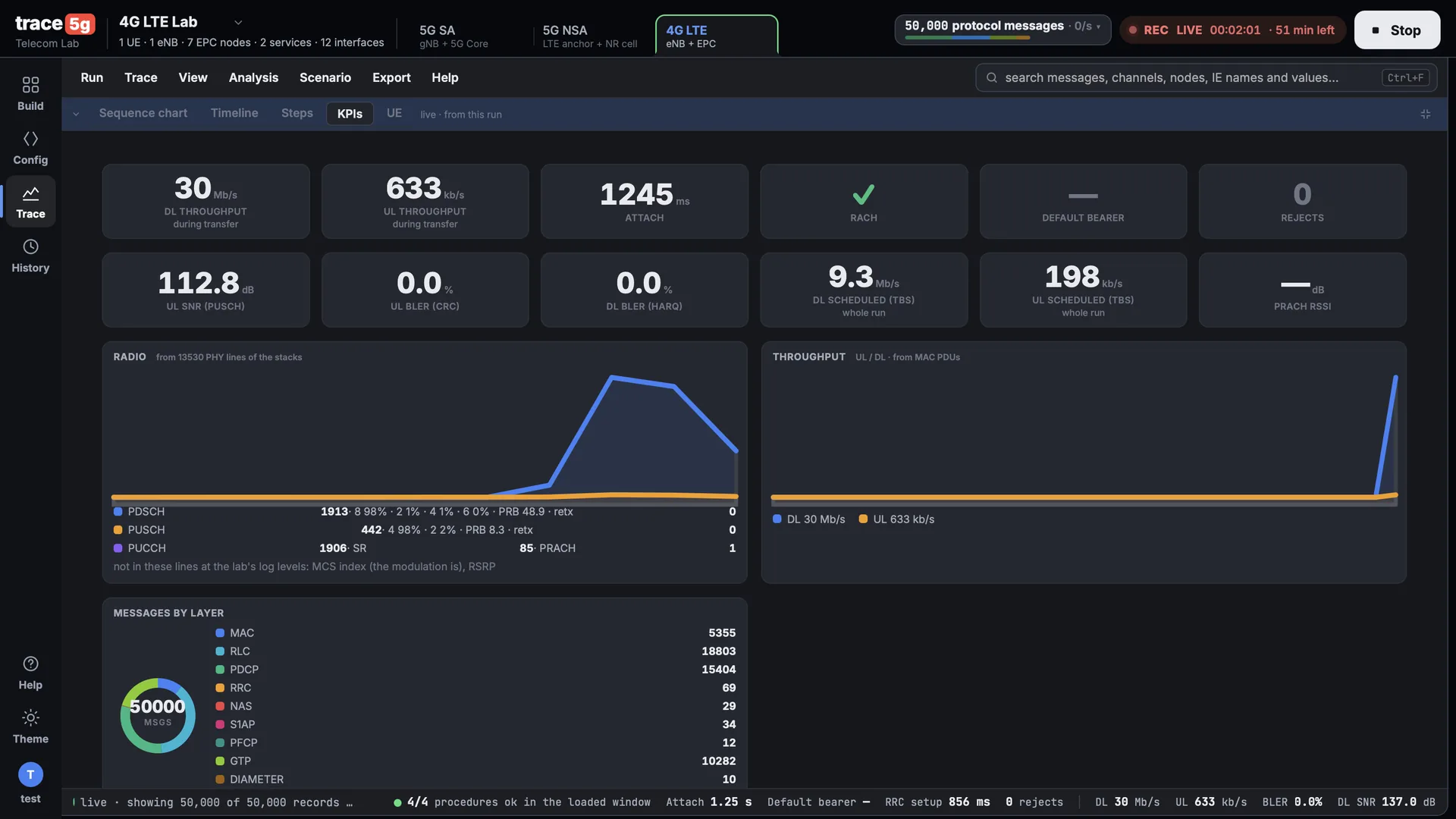

Connect the trace to its metrics.
Check procedure completion, timing and available DL/UL indicators alongside the records. Missing measurements stay empty.
Real records generated by the run, with decoded fields, sequence and timing. See recorded examples and protocol coverage.
Real network scenarios.
Conditions you control.

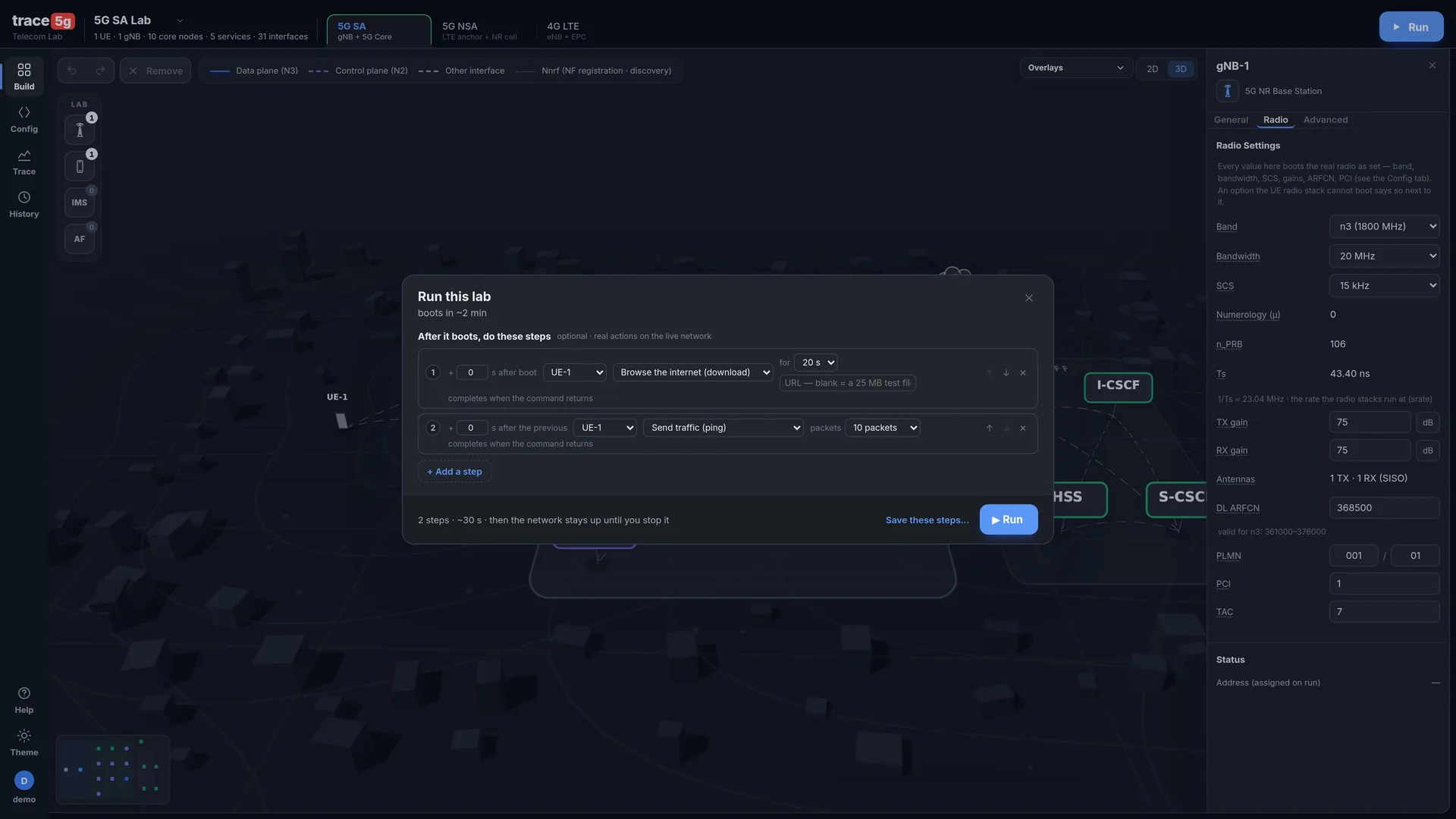

Start with a preset or compose your own sequence. Run the procedure, inspect its messages, then change the conditions for your next investigation.
Select a scenario to explore.
Follow attachment or registration through bearer or PDU session setup. Inspect the exchanges that establish a data connection.
Run originating and terminating (MO/MT) call scenarios and exchange SMS over IMS. Follow setup, media and release between subscribers.
Send pings or run a download. Relate the generated traffic to its messages, latency and available throughput measurements.
Investigate handover between compatible cells, or explore how NSA adds an NR secondary cell through EN-DC.
Request and release a dedicated QoS flow. Inspect the policy and session exchanges produced by the configured 5G core.
Stop a core function or reconnect a UE. Examine what changes, what fails and how the network responds.
Network availability & prerequisitesShow detailsHide details
Available across LTE, SA and NSA
Attach or registration, bearer or PDU session setup, UE capability enquiry, IMS registration, MO/MT calls, two-way voice media, SMS over IMS, ping, downloads, UE reconnect and core-function stop/start.
LTE and NSA use EPC bearers; SA uses PDU sessions.
Match the setup to the procedure
Calls and messaging require IMS and two subscribers. Handover is available in LTE and SA with compatible cells. EN-DC uses an LTE anchor and NR secondary cell in NSA. Dedicated QoS flow requests and releases require AF setup in SA.
Available actions depend on the selected technology, nodes and configuration. Read the scenario documentation.
Make the scenario
your own.

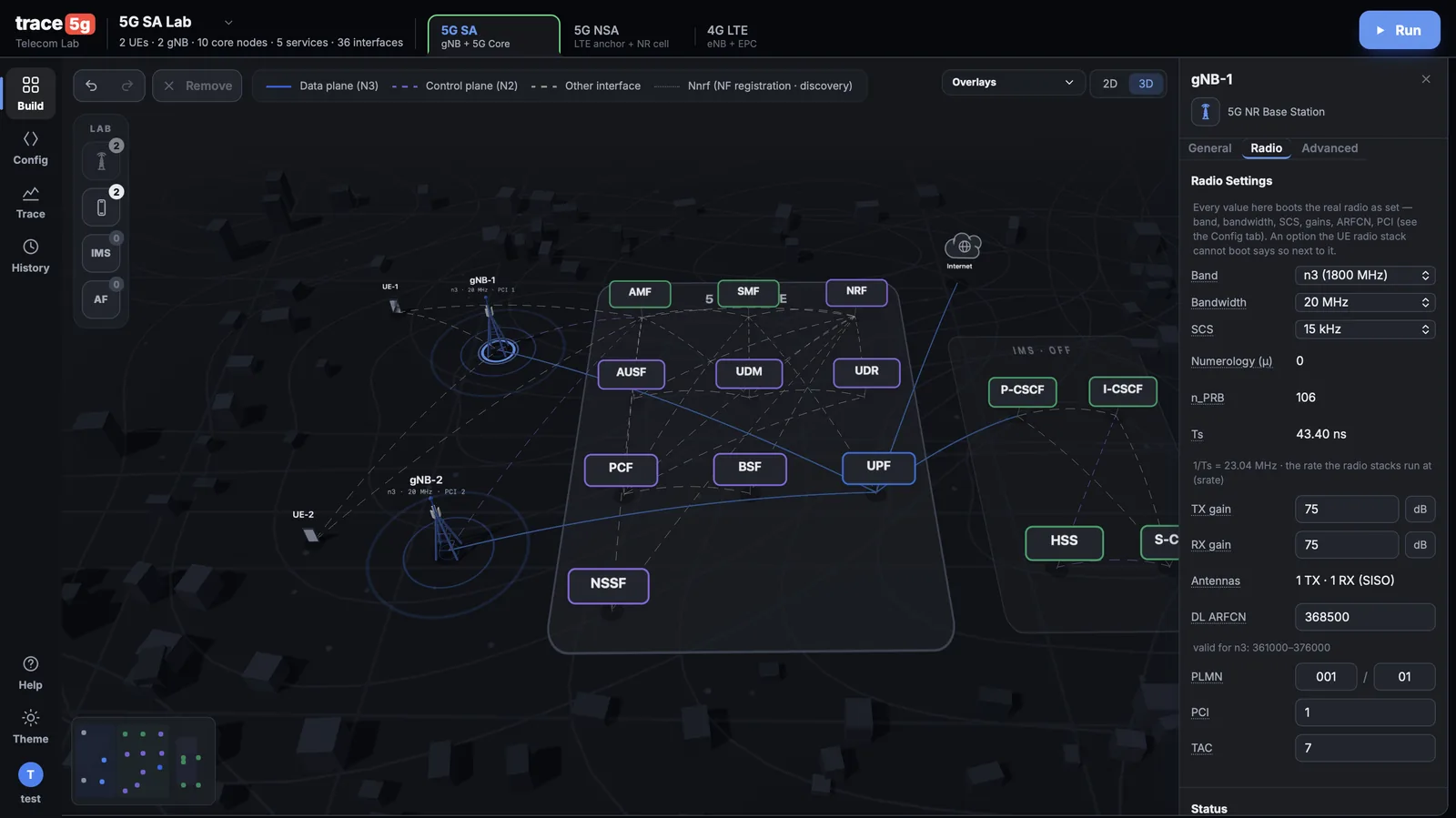

Choose the nodes and radio settings, then combine actions and delays. Save your configuration and sequence for the next investigation.
4G/5G network testing.
Protocol analysis.
Run a private network, exercise real scenarios and inspect the exchanges from radio to core. Use the same environment for engineering investigations, technical reviews and practical training.
Engineering investigationsTechnical reviewsHands-on teaching
Evidence for
your next step.
your next step.
A real run. A trace you can examine.
Protocol engineers
Investigate what went wrong.
Follow a failed connection, session setup or call across UE, radio and core. Find the records you need for the next debugging step.
Companies & teams
Bring evidence into the review.
Run a prepared scenario and share its exported records. Ground the discussion in observed behaviour, without taking on local lab installation and upkeep.
Educators & students
Let learners test their understanding.
Change a scenario, observe the messages and explain the procedure. Give learners hands-on protocol work without equipping each person with a dedicated test rig.
A run ends.
Its evidence stays useful.
History
Reopen a saved run with its messages, decoded fields and analysis views.
PCAP
Download packet captures for further packet-level investigation.
JSON
Export structured records for scripts, analysis and reporting.
Explain a result with evidence.
Follow a procedure across nodes, inspect the response and use the trace to decide what to test next.
Give technical work a shared reference.
Bring exported records into reviews. Reuse prepared experiments for demonstrations and onboarding.
Teach the procedure through a real run.
Run a call or data session, inspect its messages, then let learners change the conditions and investigate.
Know what you’re running.
Are the traces generated by my experiment?
Yes. Each run starts a network environment. The analyzer displays records generated during that run and decoded from its captures. How a run works.
Is the network private to my run?
Each run has its own core, subscriber data and address space. Saved run history belongs to your account. Run isolation.
What do I need to get started?
A browser and a Trace5G account. Choose LTE, SA or NSA, configure the lab and start a run. The progress panel shows startup before records arrive.
Can I keep what a run produced?
Yes. Each finished run stays in your history with its decoded trace. Open it again in the analyzer, or export it as JSON or a packet capture.
